| Alernating Step Steel Crossover | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model # | Steps | Clearance Height | Clearance Span | Overall Length | Overall Height | Step Angle Degree | Weight [Lbs] | Price |
| DS-COLA-2-56-20 | 4 | 27" | 21-1/4" | 78-1/8" | 72" | 56 | 324 | $2,121 |
| DS-COLA-2-56-32 | 4 | 27" | 29-1/4" | 85-1/4" | 72" | 56 | 357 | $2,183 |
| DS-COLA-2-56-44 | 4 | 27" | 36-1/4" | 92-1/8" | 72" | 56 | 390 | $2,258 |
| DS-COLA-2-56-56 | 4 | 27" | 50-1/4" | 106-1/8" | 72" | 56 | 423 | $2,324 |
| DS-COLA-2-68-20 | 4 | 27" | 20" | 65" | 72-1/2" | 68 | 296 | $2,121 |
| DS-COLA-2-68-32 | 4 | 27" | 27" | 72" | 72-1/2" | 68 | 329 | $2,183 |
| DS-COLA-2-68-44 | 4 | 27" | 34" | 79" | 72-1/2" | 68 | 362 | $2,258 |
| DS-COLA-2-68-56 | 4 | 27" | 48" | 93" | 72-1/2" | 68 | 396 | $2,324 |
| DS-COLA-3-56-20 | 5 | 35" | 22-1/2" | 88" | 80" | 56 | 324 | $2,121 |
| DS-COLA-3-56-32 | 5 | 35" | 29-1/2" | 95" | 80" | 56 | 357 | $2,183 |
| DS-COLA-3-56-44 | 5 | 35" | 36-1/2" | 102" | 80" | 56 | 390 | $2,258 |

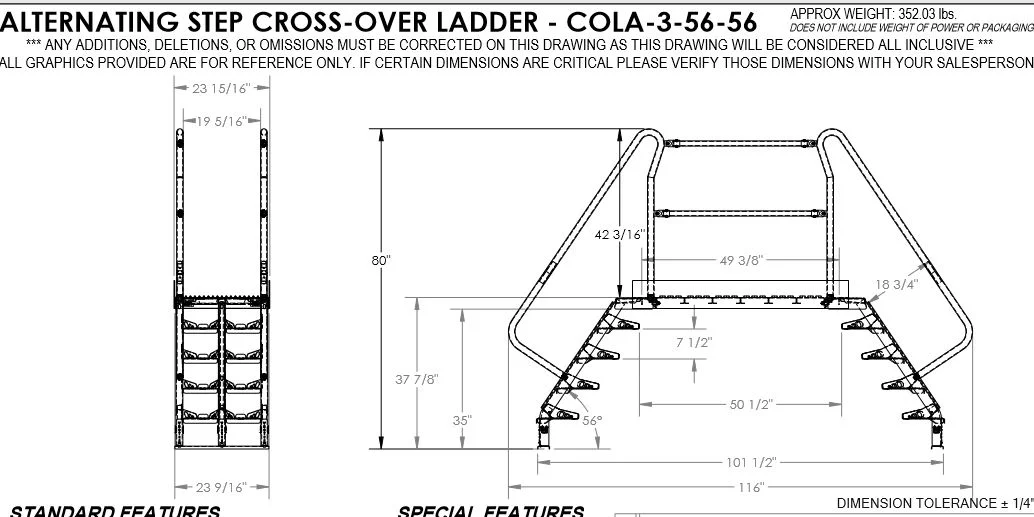

| DS-COLA-3-56-56 | 5 | 35" | 50-1/2" | 116" | 80" | 56 | 423 | $2,324 |
| DS-COLA-3-68-20 | 5 | 35" | 20" | 116" | 80-1/2" | 68 | 296 | $2,121 |
| DS-COLA-3-68-32 | 5 | 35" | 27" | 72" | 80-1/2" | 68 | 329 | $2,183 |
| DS-COLA-3-68-44 | 5 | 35" | 34" | 79" | 80-1/2" | 68 | 362 | $2,258 |
| DS-COLA-3-68-56 | 5 | 35" | 48" | 93" | 80-1/2" | 68 | 396 | $2,324 |
| DS-COLA-4-56-20 | 7 | 45" | 21-3/4" | 96-1/4" | 90-1/2" | 56 | 324 | $2,361 |
| DS-COLA-4-56-32 | 7 | 45" | 28-3/4" | 95" | 96-1/4" | 56 | 357 | $2,391 |
| DS-COLA-4-56-44 | 7 | 45" | 35-3/4" | 103-1/4" | 90-1/2" | 56 | 390 | $2,740 |
| DS-COLA-4-56-56 | 7 | 45" | 49-3/4" | 117-1/4" | 90-1/2" | 56 | 423 | $2,770 |
| DS-COLA-4-68-20 | 7 | 45" | 19-1/2" | 68-1/2" | 91" | 68 | 296 | $3,156 |
| DS-COLA-4-68-32 | 7 | 45" | 26-1/2" | 75-1/2" | 91" | 68 | 329 | $3,185 |
| DS-COLA-4-68-44 | 7 | 45" | 33-1/2" | 82-1/2" | 91" | 68 | 362 | $3,565 |
| DS-COLA-4-68-56 | 7 | 45" | 47-1/2" | 96-1/2" | 91" | 68 | 396 | $3,595 |
| DS-COLA-5-56-20 | 8 | 57-1/2" | 22-1/2" | 104-1/2" | 102-1/2" | 56 | 358 | $2,740 |
| DS-COLA-5-56-32 | 8 | 57-1/2" | 29-1/2" | 111-1/2" | 102-1/2" | 56 | 390 | $2,760 |
| DS-COLA-5-56-44 | 8 | 57-1/2" | 36-1/2" | 118-1/2" | 102-1/2" | 56 | 424 | $3,155 |
| DS-COLA-5-56-56 | 8 | 57-1/2" | 50-1/2" | 133-1/2" | 102-1/2" | 56 | 456 | $3,185 |
| DS-COLA-5-68-20 | 8 | 57-3/8" | 20" | 77-1/2" | 103" | 68 | 330 | $3,564 |
| DS-COLA-5-68-32 | 8 | 57-3/8" | 27" | 84-/1/2 | 1032" | 68 | 363 | $3,594 |
| DS-COLA-5-68-44 | 8 | 57-3/8" | 34" | 91-1/2" | 103" | 68 | 396 | $3,945 |
| DS-COLA-5-68-56 | 54 | 57-3/8" | 48" | 105-1/2 | 103" | 68 | 430 | $3,975 |
| DS-COLA-6-56-20 | 10 | 69-1/2" | 22" | 122" | 114-1/2" | 56 | 396 | $3,155 |
| DS-COLA-6-56-32 | 10 | 69-1/2" | 29" | 129" | 114-1/2" | 56 | 429 | $3,185 |
| DS-COLA-6-56-44 | 10 | 69-1/2" | 36" | 136" | 114-1/2" | 56 | 418 | $3,565 |
| DS-COLA-6-56-56 | 10 | 69-1/2" | 50" | 150" | 114-1/2" | 56 | 429 | $3,595 |
| DS-COLA-6-68-20 | 10 | 69-3/8" | 19-3/4" | 87-1/2" | 115" | 68 | 402 | $3,945 |
| DS-COLA-6-68-32 | 10 | 69-1/2" | 26-3/4" | 87-1/2" | 115" | 68 | 413 | $3,975 |
| DS-COLA-6-68-44 | 10 | 69-3/8" | 33-3/4" | 101-1/2" | 80-1/2" | 68 | 431 | $4,361 |
| DS-COLA-6-68-56 | 10 | 69-3/8" | 47-3/4" | 115-1/2" | 1152" | 68 | 464 | $4,391 |
| DS-COLA-7-56-20 | 12 | 81-3/8" | 21-3/4" | 137-1/2" | 126-1/2" | 56 | 433 | $3,565 |
| DS-COLA-7-56-32 | 12 | 81-3/8" | 28-3/4" | 144-1/2" | 126-1/2" | 56 | 466 | $3,595 |
| DS-COLA-7-56-44 | 12 | 81-3/8" | 35-3/4" | 151-1/2" | 126-1/2" | 56 | 499 | $3,944 |
| DS-COLA-7-56-56 | 12 | 81-3/8" | 49-3/4" | 165-1/2" | 126-1/2" | 56 | 532 | $3,974 |
| DS-COLA-7-68-20 | 12 | 81-3/8" | 19-3/4" | 97-3/8" | 1272" | 68 | 400 | $4,361 |
| DS-COLA-7-68-32 | 12 | 81-1/2" | 293/47" | 104-3/8" | 127" | 68 | 444 | $4,391 |
| DS-COLA-7-68-44 | 12 | 81-1/2" | 33-3/4" | 111-3/8" | 127" | 68 | 475 | $4,761 |
| DS-COLA-7-68-56 | 12 | 81-1/2" | 47-3/4" | 125-3/8" | 127" | 68 | 499 | $4,791 |
| All Dimensions are in inches | ||||||||
Alternating Step Cross-Over Ladders
Alternating Step Cross-Over Ladders
$2,173.00
Mount where you need permanent access at crossover points. Alternating step design for shorter overall span than other units.
Wherever you have space issues this crossover has a shorter overall footprint for a more compact fit. If you do not see the size you need, please call and we will make it to your specifications.
CALL US AT (888)-802-3651 OR CLICK BUTTON FOR A FREIGHT QUOTE
WHEN YOU PURCHASE A CROSSOVER LADDER OR PLATFORM FROM DIVERSE SUPPLY, YOU ARE SIMULTANEOUSLY AGREEING THAT DIVERSE SUPPLY IS NOT LIABLE FOR ANY INJURY OR PROPERTY DAMAGE RELATED TO THE USE OF THE CROSSOVER LADDER OR PLATFORM.
