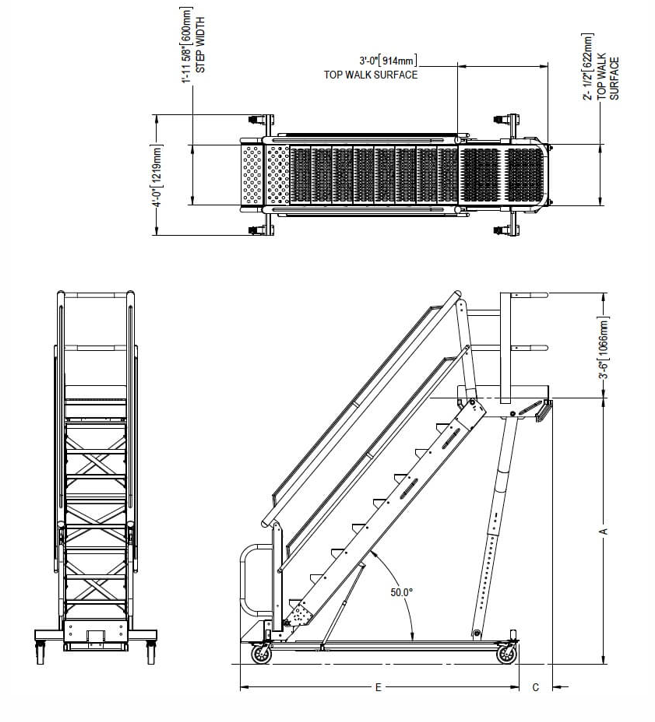

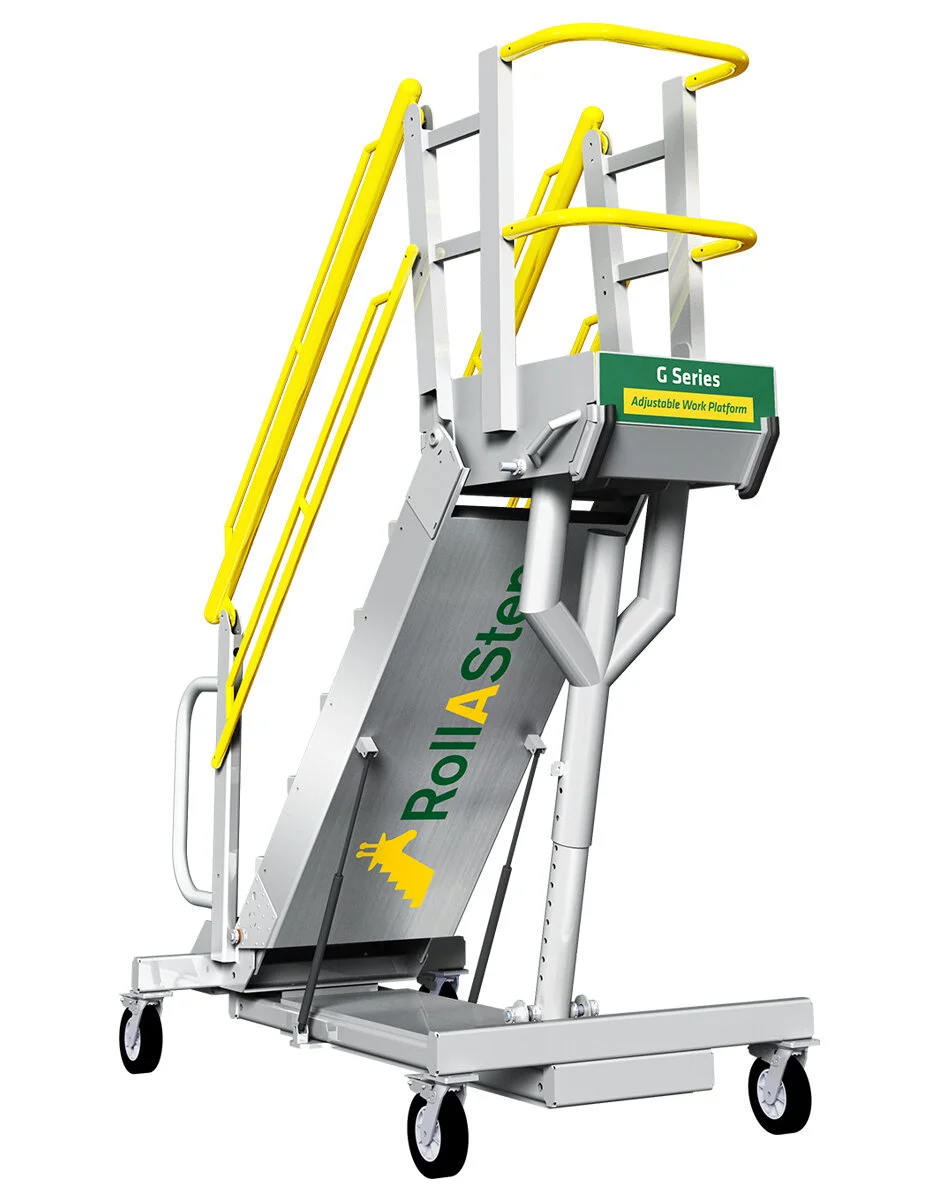

 RollAStep - G Series

    Model #
    # of
 Steps
    Top Step
 Height
    Weight
 Lbs.
    Price

    DS-11793-G7
    7
    75-13/18"
     641
    $15,169

    DS-11794-G8
    8
    85-13-18"
     648
    $16,126

    DS-11795-G9
    9
    95-3/4"
      686
    $17,086

    DS-11796-G10
    10
    106-11/16"
     721
    $18,044

Lead-time 3-4 weeks

Standard Features

General Functions

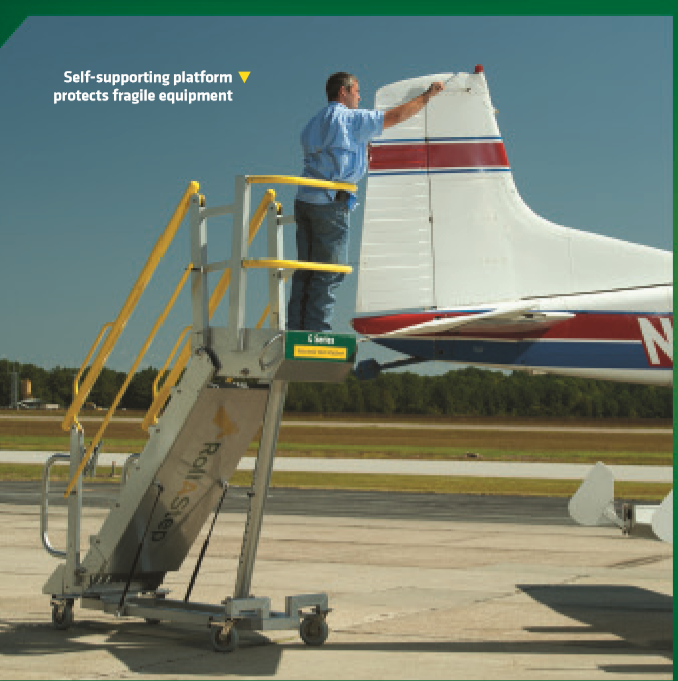

The G Series’ six sq. ft. work area provides room for an operator and equipment, while the wide steel base provides excellent stability. Heavy duty with a 500 lb capacity.

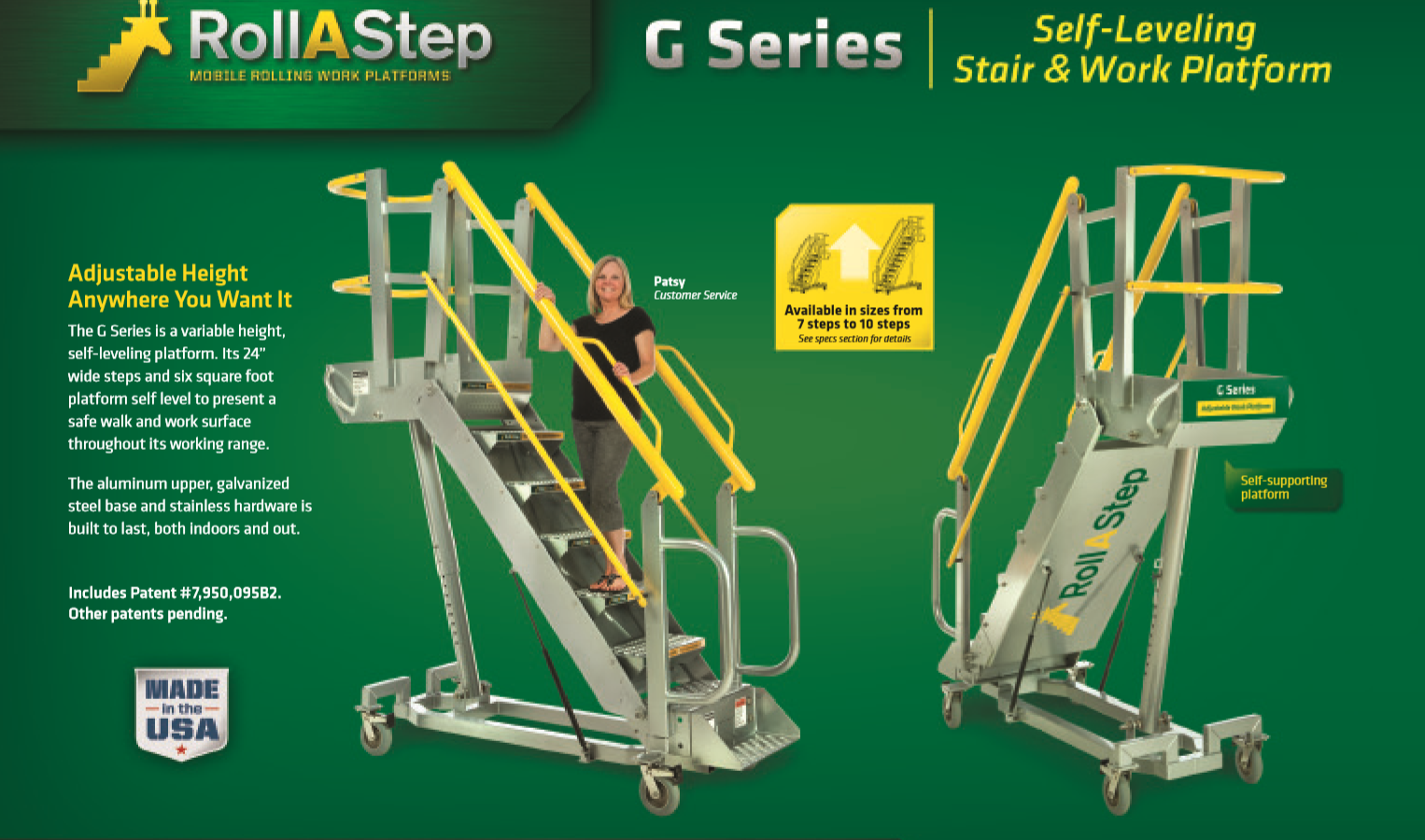

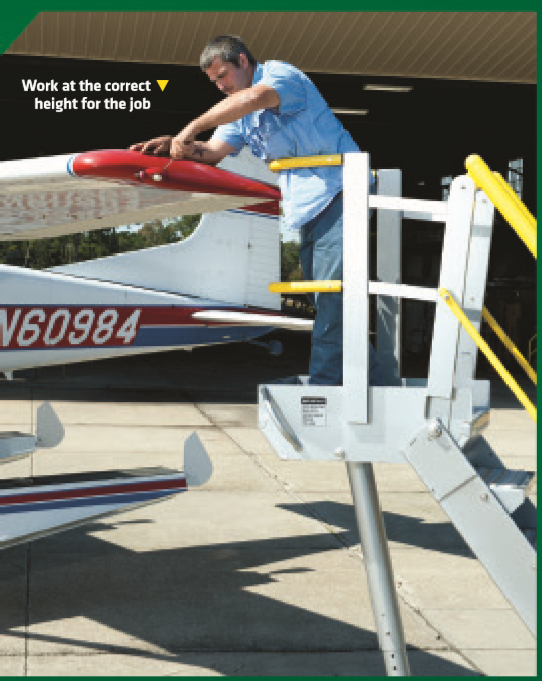

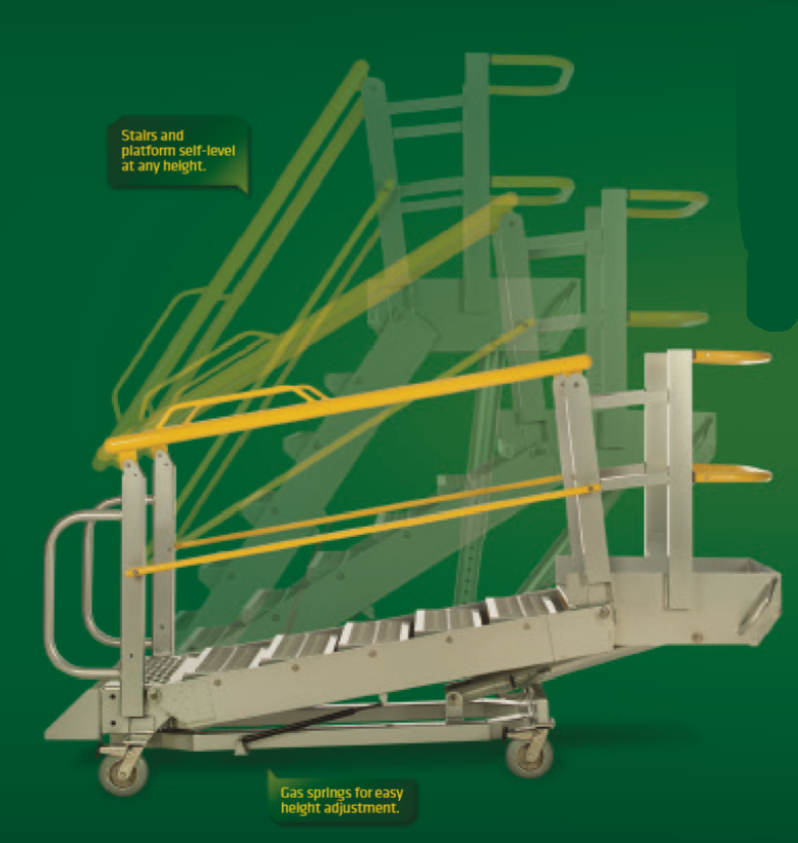

Adjustable Height

Adjusts height with the removal of a single locking pin.
Pins allow it to adjust at approximately 3 inches per adjustment.
The gas springs provide assistance in raising the platform while gentle downward pressure lowers the platform.
Replace the locking pin at the desire height and the stair is ready for use .

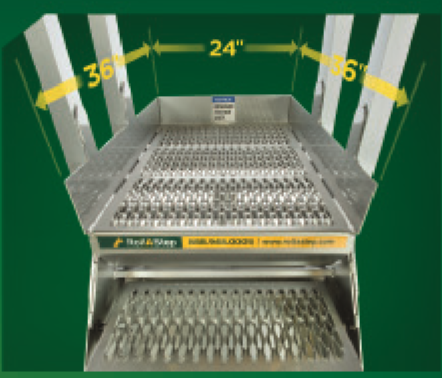

Work Area

The G Series’ six square foot work area is large enough for an operator, tools, and parts. Each platform also features a full toe board to prevent slips and tool misplacement. 24” wide x 36” deep.

Built to Last, Built for Safety

The aluminum upper hardware is built to last, both indoors and out. Our unyielding, self draining tread, is featured on all platforms and steps. This pattern provides safe, all weather access in both rain and snow and reduces ice build up.

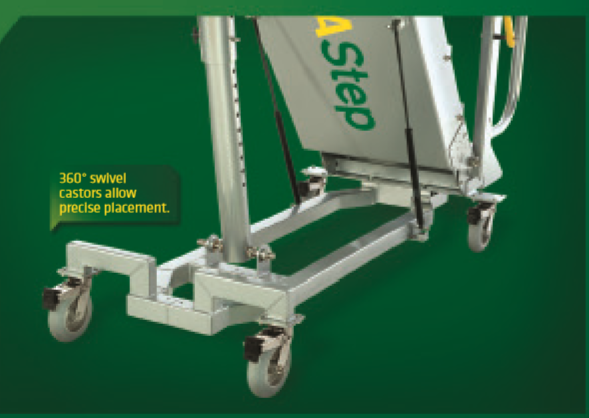

Mobility

The light weight and high quality casters make this rolling gangway easy for a single user to position. The soft 360° swiveling casters are easy to roll both indoors and out and allow precise placement around sensitive equipment.

Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
